UA.II.A.K1

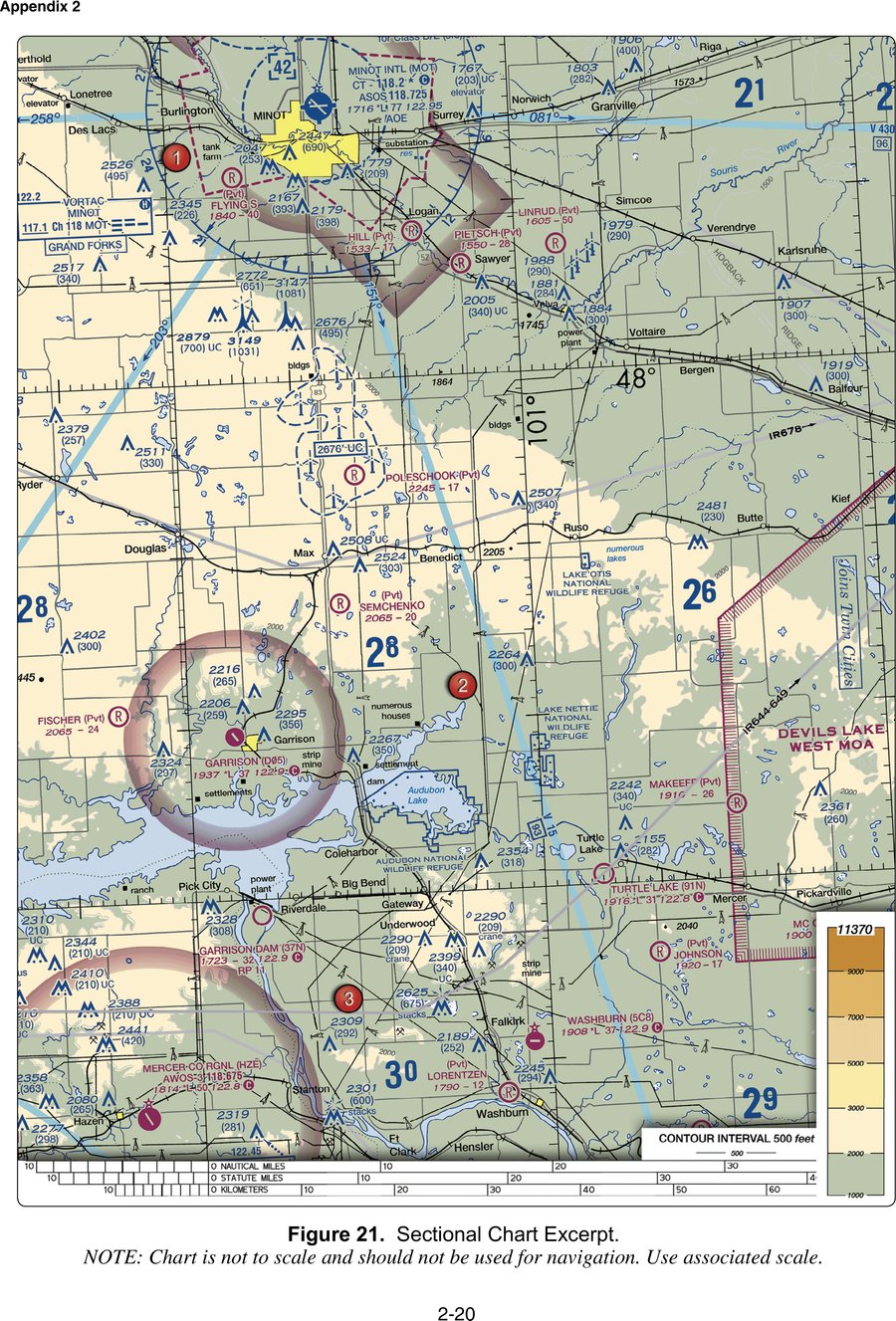

Figure 21 — Sectional Chart Excerpt · FAA-CT-8080-2H, p. 2-20

Figure 21 shows Minot International Airport (MOT) surrounded by a dashed blue line with a boxed number "42" near it. What does the boxed number represent?

Why: FAA-CT-8080-2H Legend 1 defines a boxed number as the "Ceiling of Class D Airspace in hundreds of feet," adding that a *minus* ceiling value would mean surface up to but not including that value. The plain "42" near Minot's dashed blue Class D boundary therefore means the Class D airspace there has a ceiling of 4,200 feet MSL.

  • Misreads the boxed Class D ceiling figure as a frequency; chart frequencies are written in MHz next to a "CT" or similar label, not inside a boxed number next to the airspace boundary.
  • Invents a meaning for the boxed number that Legend 1 does not support — the box specifically denotes a Class D ceiling, not an approach-procedure count.

UA.II.A.K1Source: sport_rec_private_akts.pdf, Figure 21, p. 2-20; Legend 1, p. 1-1Reviewed 2026-10-21
